Infrared Ring Around Saturn
Ssc2009 19a

Credit: NASA/JPL-Caltech/Univ. of Virginia

Observation • October 6th, 2009 • ssc2009-19a

ssc2009-19a

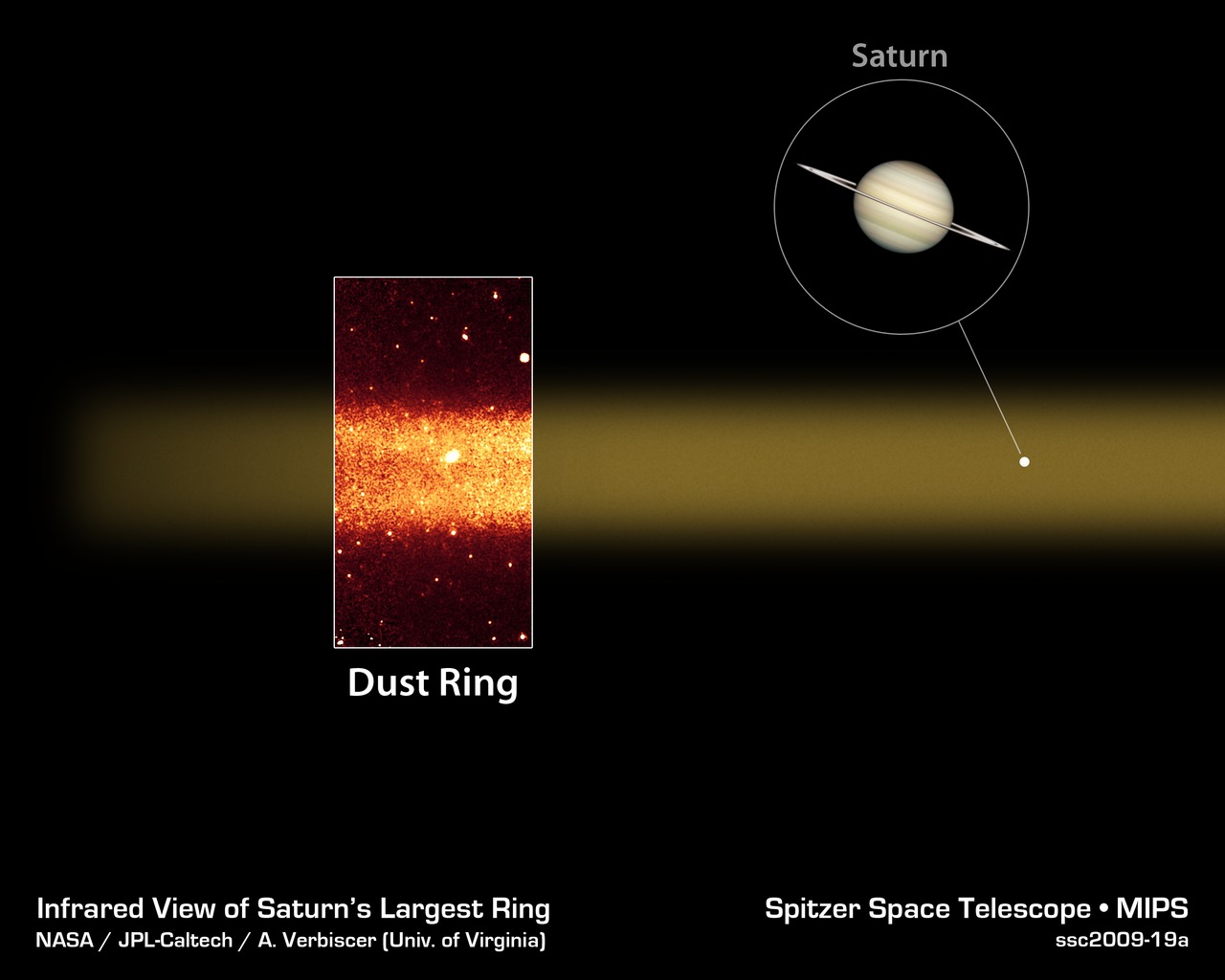

This diagram highlights a slice of Saturn's largest ring. The ring (red band in inset photo) was discovered by NASA's Spitzer Space Telescope, which detected infrared light, or heat, from the dusty ring material. Spitzer viewed the ring edge-on from its Earth-trailing orbit around the sun.

The ring has a diameter equivalent to 300 Saturns lined up side to side. And it's thick too -- about 20 Saturns could fit into its vertical height. The ring is tilted about 27 degrees from Saturn's main ring plane.

The Spitzer data were taken by its multiband imaging photometer and show infrared light with a wavelength of 24 microns.

The picture of Saturn was taken by NASA's Hubble Space Telescope.

About the Object

Name
Saturn
Type
Planet > Ring
Planet > Type > Gas Giant

Color Mapping

Band Wavelength Telescope
Infrared 24.0 ┬Ám Spitzer MIPS

Astrometrics

Position (J2000)
RA =11h 39m 39.4s
Dec = 4° 27' 22.3"
Field of View
7.9 x 14.8 arcminutes
Orientation
North is 23.0° right of vertical
