First Structures in the Distant Universe
Ssc2012 08a

Credit: NASA/JPL-Caltech/GSFC

Observation • June 7th, 2012 • ssc2012-08a


Astronomers have uncovered the patterns of light that appear to be from the first stars and galaxies that formed in the universe, hidden within a strip of sky observed by NASAs Spitzer Space Telescope.

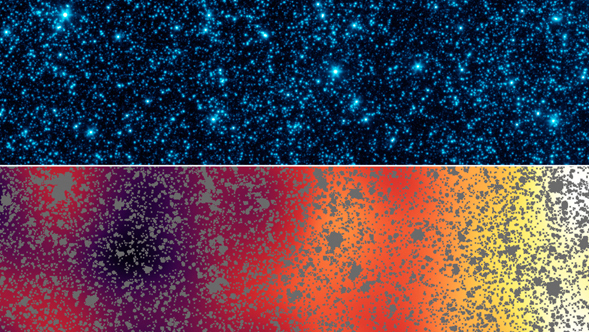

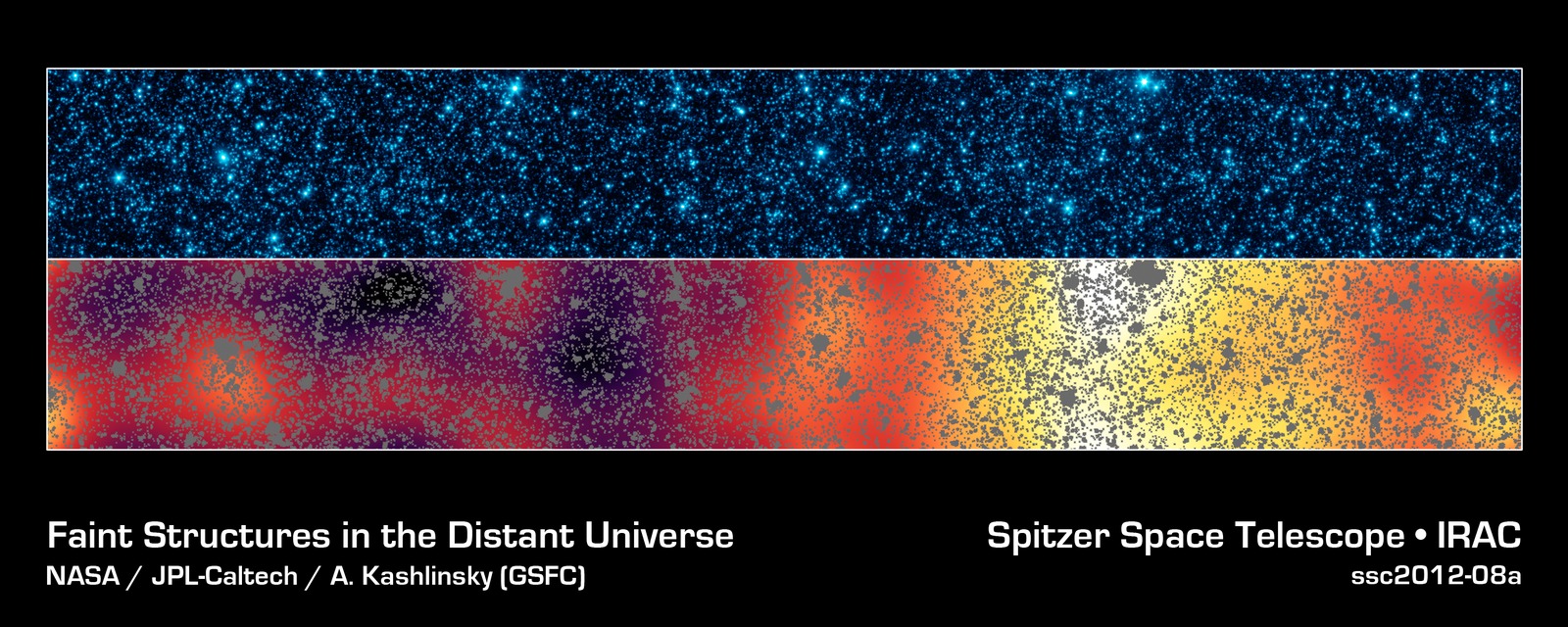

These two panels show the same slice of sky in the constellation Botes, dubbed the Extended Groth Strip. The area covered is about 1 by 0.12 degrees in angular extent.

The top panel shows Spitzers typical infrared view of this patch, including foreground stars and a confusion of fainter galaxies, at a wavelength of 4.5 microns.

In the lower panel, all of the resolved stars and galaxies have been masked out of the image (grey patches), and the remaining background glow has been smoothed and enhanced. This processing reveals a structure too faint to be seen in the original image.

The structure of the lower panel matches just what we would expect for the patterns of clusters for the first galaxies formed in the universe. Even though any particular early galaxy would be too faint to see individually, this technique allows astronomers to better understand what things were like shortly after the Big Bang.

About the Object

Cosmic Infrared BackgroundExtended Groth Strip
Cosmology > Morphology > Deep Field
Cosmology > Morphology > Cosmic Background

Color Mapping

Band Wavelength Telescope
Infrared 4.5 ┬Ám Spitzer IRAC


Position ()
RA =14h 19m 11.8s
Dec = 52° 48' 4.7"
Field of View
1.0 x 0.1 degrees
North is 49.5° left of vertical
