Water Vapor in the Young Planetary Disk of AS 205N
Ssc2008 06b

Credit: NASA/JPL-Caltech/J.Carr (Naval Research Laboratory)

Chart • March 13th, 2008 • ssc2008-06b

ssc2008-06b

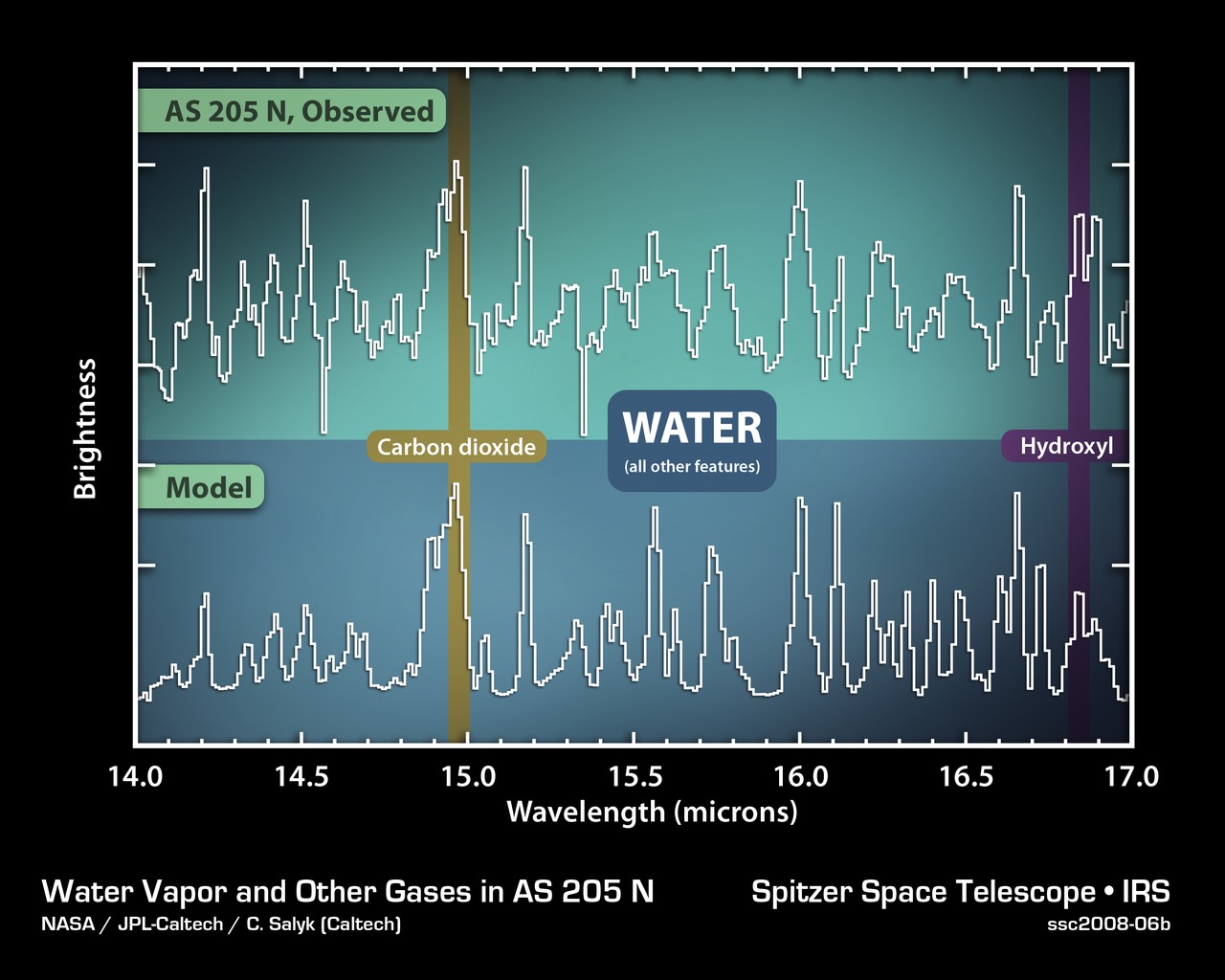

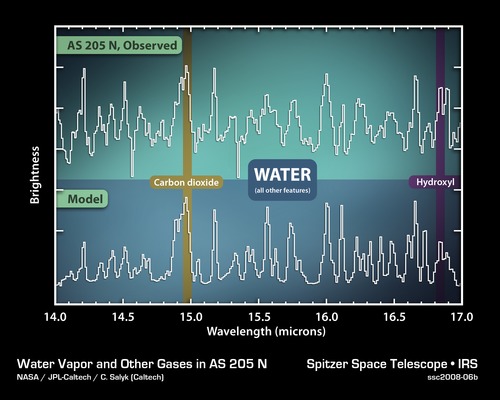

This plot of infrared data shows the strong signature of water vapor in the disk of gas and dust surrounding a young star.

The data on the top line were captured by NASA's Spitzer Space Telescope's spectrograph, which collects light and sorts it according to color, or wavelength. In this case, infrared light from gases around the star AS 205 N was broken up into the wavelengths listed on the horizontal axis of the plot. The sharp spikes are called spectral lines, and each molecule has its own unique pattern, much like a fingerprint. The pattern of spikes reveals the signature of water vapor, along with smaller amounts of carbon dioxide and hydroxyl.

By comparing the observed data with a model, shown on the lower line, astronomers can determine the physical and chemical details of the region. The model is constructed by adjusting the relative spectral contributions of each chemical component until the theoretical line matches the observed data. The calculations that went into the model provide information on how much of a given material is present, what its temperature is and how much area it covers.

About the Object

Name
AS 205N
Type
Star > Type > Variable
Star > Circumstellar Material > Disk

Color Mapping

Band Wavelength Telescope
Infrared Spitzer IRS
