The Language of Planetary Light
Ssc2005 09a

Credit: NASA/JPL-Caltech/D. Charbonneau (Harvard-Smithsonian CfA) and D. Deming (Goddard Space Flight Center)

Chart • March 22nd, 2005 • ssc2005-09a

ssc2005-09a

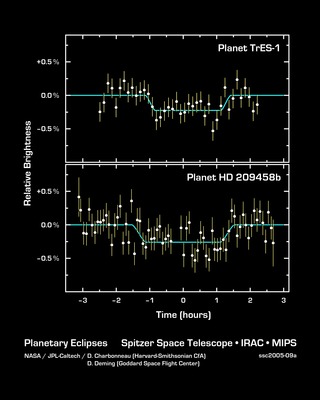

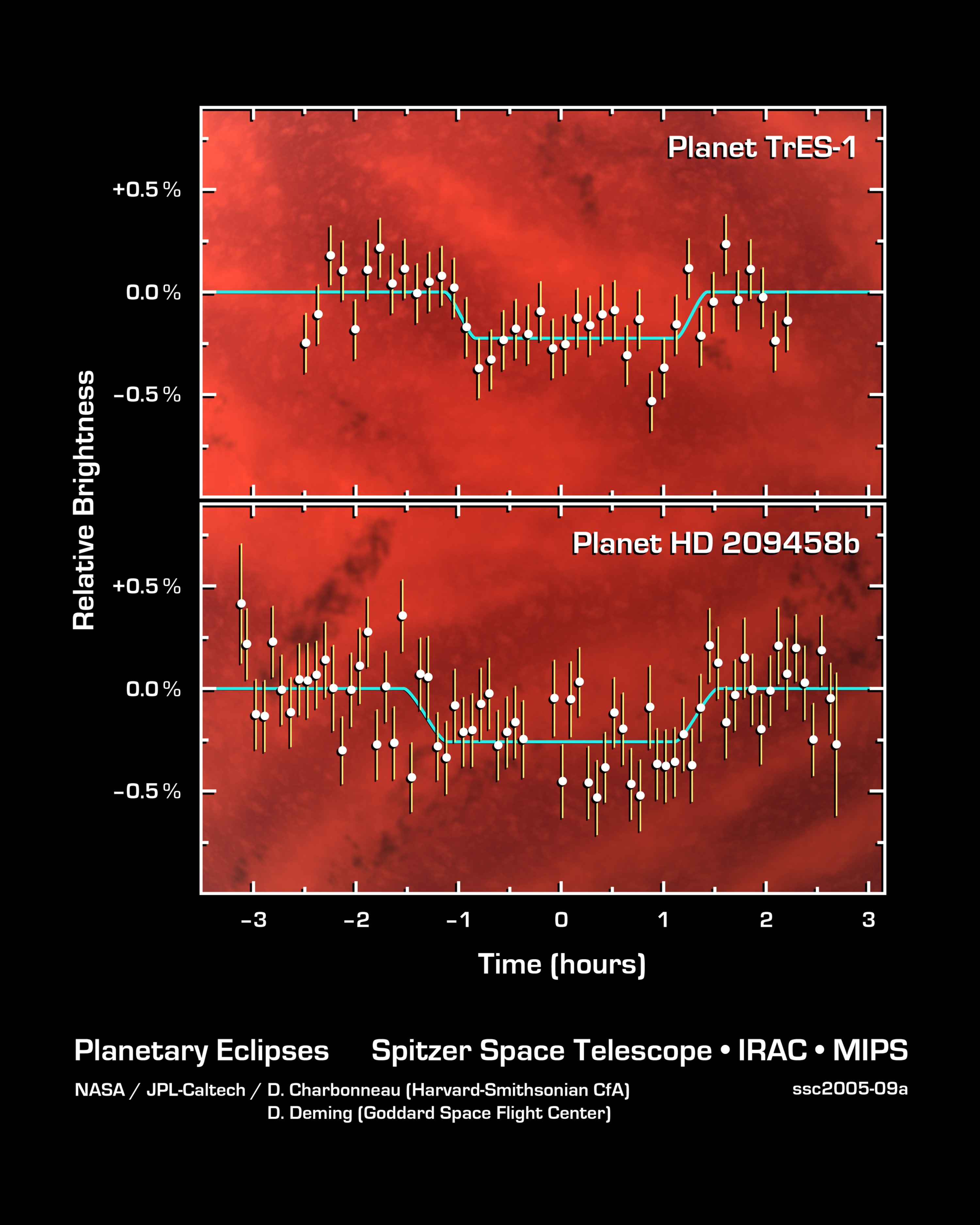

This graph of data from NASA's Spitzer Space telescope shows changes in the infrared light output of two star-planet systems (one above, one below) located hundreds of light-years away. The data were taken while the planets, called HD 209458b and TrES-1, disappeared behind their stars in what is called a "secondary eclipse." The dip seen in the center of each graph represents the time when the planets were eclipsed, and tells astronomers exactly how much light they emit.

Why a secondary eclipse? When a planet transits, or passes in front of, its star, it partially blocks the light of the star. When the planet swings around behind the star, the star completely blocks its light. This drop in total light can be measured to determine the amount of light coming from just the planet.

Why infrared? In visible light, the glare of a star overwhelms its planetary companion and the little light the planet reflects. In infrared, a star shines less brightly, and its planet gives off its own internal light, or heat radiation, making the planet easier to detect.

By observing these secondary eclipses at different infrared wavelengths, astronomers can obtain the planet's temperature, and, in the future, they may be able to pick out chemicals sprinkled throughout a planet's atmosphere. The technique also reveals whether a planet's orbit is elongated or circular.

This strategy will not work for all known extrasolar planets. It is ideally suited to study those Jupiter-sized planets previously discovered to cross, or transit, between us and the Sun-like stars they orbit, out to distances of 500 light-years. NASA's Spitzer Space Telescope was the first to successfully employ this technique.

The data of HD 209458b were taken by Spitzer's multiband imaging photometer using the 24-micron array. The data of TrES-1 were taken by Spitzer's infrared array camera using the 8-micron array.

About the Object

Name
HD 209458bTrES-1
Type
Star > Circumstellar Material > Planetary System
Planet > Type > Gas Giant
Planet > Special Cases > Transiting
Planet > Special Cases > Hot Jupiter
Distance
153 Light Years

Color Mapping

Band Wavelength Telescope
Infrared 8.0 µm Spitzer IRAC
Infrared 24.0 µm Spitzer MIPS

Astrometrics

Position ()
RA =19h 4m 9.8s
Dec = 36° 37' 57.0"
Field of View
0.0 x 0.0 arcminutes
Orientation
North is up
